Product FORGED STEEL VALVES

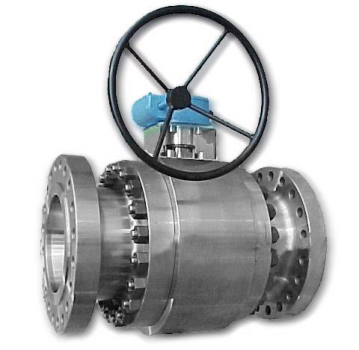

BALL VALVE
- Size : 1/4" to 3"
- Design Standard : API 6D, API 608,API 607F, ASME B16.34
- Type : Three Piece, Turnion
- Pressure Rating : 800# & 1500#
- Material of Construction : Forged Carbon Steel (ASRM A105) & Forged Stainless Steel (ASTM A 182 F 304, 304 L, 316, 316L)
- End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

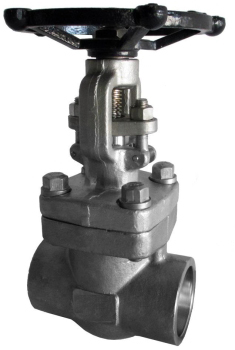

GATE VALVES
- Size : 1/4" to 2"
- Design Standard : API602, BS5352 and ANSI B16.34
- Type : Bolted bonnet, outside screw and yoke
- Pressure Rating : 800# & 1500#
- Material of Construction : Forged Carbon Steel (ASRM A105) & Forged Stainless Steel (ASTM A 182 F 304, 304 L, 316, 316L)
- End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End

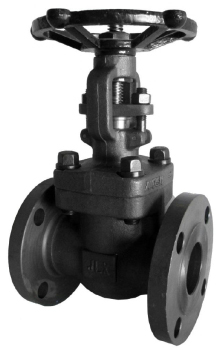

GLOBE VALVES
- Size : 1/4" to 2"
- Design Standard : API602, BS5352, ANSI B16.34.
- Type : Bolted Bonnet, O.S & Y. Rising Spindle, Plug Type Disc
- Pressure Rating : 800# & 1500#
- Material of Construction : Forged Carbon Steel (ASTM) A 105) & Forged Stainless Steel (ASTM A 182, F 304, 304L, 316, 316L)
- End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End
CHECK VALVES
- Size : 1/4" to 2"
- Design Standard : API602, BS5352, and ANSI B16.34
- Type : Bolted Cover Piston, Lift Type, Swing Type
- Pressure Rating : 800# & 1500#
- Material of Construction : Forged Carbon Steel (ASTM.A105) & Forged Stainless Steel (ASTM A 182,F 304, 304L, 316, 316L)
- End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End
PLUG VALVE
- Size : 1/4" to 2"
- Design Standard : API 6D, BS 599, API 607F
- Type : Pressure Balance
- Pressure Rating : 800# & 1500#
- Material of Construction : Forged Carbon Steel (ASTM) A 105) & Forged Stainless Steel (ASTM A 182, F 304, 304L, 316, 316L)
- End Connection : Screwed End(BSP/NPT), Socket Weld End / Butt Weld End
