Product STRAINERS
BASKET STRAINER
- Size : from 2” to 16”
- Pressure : 150 – PN10/16
- Test : API 598
- Material : Carbon Steel, Stainless Steel, and Other Materials on Request.
- Distance between flanges : ASME B16.10
- Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
- Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

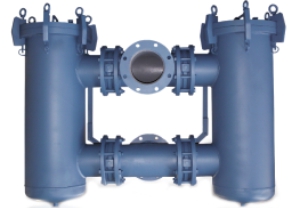

DUPLEX STRAINER
- Size : from 2” to 16”
- Pressure : 150 – PN10/16
- Test : API 598
- Material : Carbon steel, stainless steel, and other materials on request
- Distance between flanges : According to plans
- Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
- Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

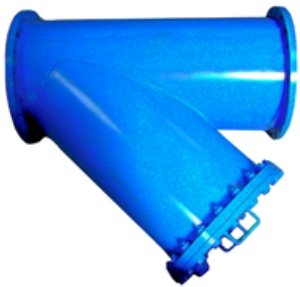

Y TYPE STRAINER
- Size : from 10” to 24”
- Pressure : 150 – PN10/16
- Test : EN 12266-1 P10
- Material : Carbon Steel, Stainless Steel, and Other Materials on Request
- Distance between flanges : EN 558-1 SERIES 1
- Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
- Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
T-STRAINER
- Size : from 3” to 24”
- Design : ASME B16.9
- Material : Carbon Steel & Stainless Steel
- Distance between flanges : ASME B16.25
- Connected in accordance with standard : ASME B16.5
- Pressure : 150#, 300#, 400#,600#, 1500# & 2500#

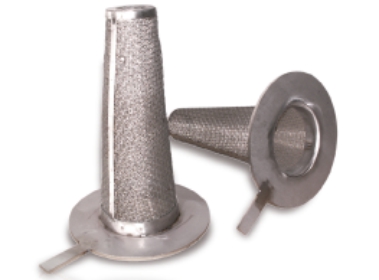

TEMPRORARY STRAINER
- Size : 1” – 24”
- Pressure : 150#, 300#, 400#,600#, 1500# & 2500#
- Test : API 598
- Material : Carbon Steel WPB, Stainless Steel CF8M
- Design : Manufacturer standard, Customers Specification available on request.
- Face to face standard : ASME B16.25
- End connection standard : ASME B16.25
